CAT® G3600 VALVETRAIN PARTS
IPD is very excited to off er new valvetrain components and a kit for the Cat G3600 series engines.
IPD is very excited to off er new valvetrain components and a kit for the Cat G3600 series engines.

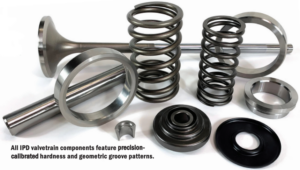

FEATURES: IPD offers a wide range of quality, precision-engineered engine repair parts. The G3600 features a shot-peened exhaust valve to ensure superior strength. Both intake and exhaust valves have induction-hardened tips. The exhaust valve seat (face) features a cobalt-chromium alloy hardface for ultimate high temperature wear resistance.
| Part Number | Part Description | Quantity per Head |
|---|---|---|

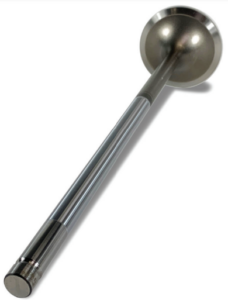

| 4P2854 | VALVE – INTAKE | 2 |
| 3287496 | VALVE – EXHAUST | 2 |
| 1W1748 | SPRING – VALVE (OUTER) | 4 |
| 1W1749 | SPRING – VALVE (INNER) | 4 |
| 1W1754 | GUIDE – VALVE SPRING | 4 |
| 1756344 | GUIDE – VALVE | 2 |
| 1713992 | INSERT – VALVE SEAT (INTAKE) | 2 |
| 1713993 | INSERT – VALVE SEAT (EXHAUST) | 2 |
| 2298567 | INSERT (PRECHAMBER) | 1 |
| 1W1752 | LOCK | 8 |
| 1894583 | ROTOCOIL | 4 |
| 0R3605VT | VALVETRAIN KIT, SINGLE CYLINDER HEAD G3600 | Includes all of the above components |
