IPD HAS EXPANDED OUR REACH OFFERING PLG KITS FOR 9.3 ACERT ENGINES

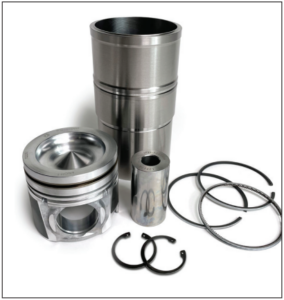

IPD is committed to expanding our reach in the Caterpillar market ensuring you have access to all of the latest engine parts for the newer C-series engines. Our latest offering is a PLG kit for the C9.3 ACERT. IPD’s PLG kits include pistons, liners, piston pins, piston rings and retainers all in one kit. However, all of these engine parts are available individually as well. You will find these engines in popular loader, dozer excavator and grader applications as well as in gen sets and marine applications. IPD’s quality pistons are made out of cast aluminum with an anti-friction skirt coating. The induction-hardened liners are all manufactured from cast iron for optimum durability. IPD main and con rod bearings, plus thrust plates are sold separately.
| Item Number | Item Description |
|---|---|
| PLG3570447 | PISTON & LINER GROUP, ALUMINUM PISTON |
| PLG4377099 | PISTON & LINER GROUP, ALUMINUM PISTON |
| PLG3695326 | PISTON & LINER GROUP, ALUMINUM PISTON |
| C9RS4 | RING SET (includes 4475626, 4671177 and 2622891 Each Ring) |
| C9RS5 | RING SET (includes 3001319, 4710275 and 2622891 Each Ring) |
| 3570447 | PISTON, ALUMINUM |
| 4377099 | PISTON, ALUMINUM |
| 3695326 | PISTON, ALUMINUM |
| 4695313 | CYLINDER LINER |
| 1670024 | LINER O-RING |
| 3001319 | PISTON RING, TOP |
| 4475626 | PISTON RING, TOP |
| 4710275 | PISTON RING, INTERMEDIATE |
| 4671177 | PISTON RING, INTERMEDIATE |
| 2622891 | PISTON RING, OIL |
| 5245566 | PISTON PIN |
| 6V5589 | RETAINING PIN, PISTON |
| 1512939 | MAIN BEARING STD |
| 2697290 | CON ROD BEARING |
| 2463150 | THRUST PLATE |
