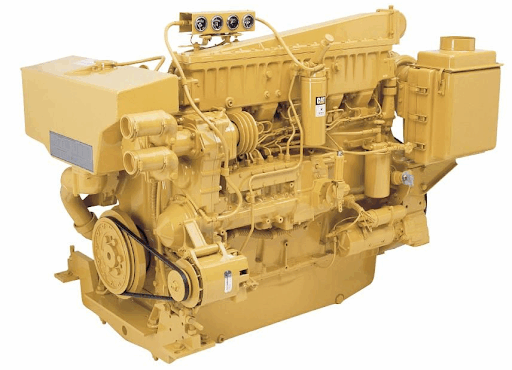

The Caterpillar 3406 engine series is proof of engineering excellence in the heavy-duty diesel engine industry. Known for its durability, performance, and adaptability, the 3406 series has powered applications from over-the-road trucks to marine vessels. This article dives into the history of the Caterpillar 3406 engine, tracing its evolution through various models and highlighting the advancements that culminated in the iconic Cat 3406E.
Origins of the Caterpillar 3406 Engine
Introduced in 1973, the original Caterpillar 3406 engine was designed to meet the growing demands of heavy-duty applications. Its robust construction and reliable performance quickly made it a favorite among operators in industries such as trucking, construction, and marine transportation.
Evolution of the 3406 Series
3406A: The Pioneer (1973–1987)
The 3406A marked the beginning of the 3406 series. This mechanically injected, inline-six engine featured a displacement of 14.6 liters. It produced between 310 to 425 horsepower and torque ranging from 1,090 to 1,460 lb-ft. The 3406A’s simplicity and reliability made it a staple in heavy-duty trucks and construction equipment.
3406B: Enhanced Performance (1987–1993)
Building upon the success of its predecessor, the 3406B introduced direct injection, improving fuel efficiency and power output. Horsepower increased to a range of 350 to 525, with torque between 1,350 to 1,750 lb-ft. The 3406B maintained the mechanical injection system but offered better performance and reliability.
3406C: Bridging Mechanical and Electronic (1993–1998)
The 3406C represented a transitional phase, incorporating Caterpillar’s Programmable Electronic Engine Control (PEEC) system. This hybrid approach combined mechanical injection with electronic controls, enhancing fuel efficiency and emissions performance. The 3406C delivered 365 to 625 horsepower and torque ranging from 1,350 to 2,050 lb-ft.
3406E: The Electronic Era (1993–2007)
The introduction of the 3406E Cat engine marked a significant shift towards electronic engine management. This model featured a fully electronic control system, improving fuel efficiency, diagnostics, and emissions compliance. The 3406E offered horsepower ranging from 435 to 800 and torque between 1,450 to 2,250 lb-ft. Its Electronic Unit Injection (EUI) system allowed for precise fuel delivery, enhancing performance and reducing emissions.
Technical Specifications of the 3406E Cat Engine
Understanding the 3406E Cat engine specs provides insight into its capabilities:
- Engine Type: Inline 6-cylinder diesel engine
- Displacement: 14.6 liters
- Bore x Stroke: 5.4 in x 6.5 in
- Compression Ratio: 15.8:1
- Fuel System: Electronic Unit Injection (EUI)
- Turbocharged: Yes
- Horsepower: 435–800 hp
- Torque: 1,450–2,250 lb-ft
- Cooling System: Water-cooled
- Dry Weight: Approximately 2,890 lbs
- Oil Capacity: 9.5 gallons
These specifications underscore the 3406E’s balance of power, efficiency, and durability, making it a preferred choice for various heavy-duty applications.
Applications Across Industries
The Caterpillar 3406 series has been utilized across multiple sectors:
- Trucking: A mainstay in Class 8 trucks, offering reliable long-haul performance.
- Construction: Powering equipment like bulldozers and excavators, providing the torque needed for demanding tasks.
- Marine: Used in vessels for propulsion and auxiliary power, valued for its robustness and reliability.
- Power Generation: Serving as a dependable source for generators in remote locations.
Legacy and Impact
The Cat 3406E and its predecessors have left an indelible mark on the diesel engine landscape. Known for their longevity and ease of maintenance, many 3406 engines remain in operation today. The 3406E, in particular, is celebrated for its blend of mechanical reliability and electronic precision, often referred to as the “last of the best” before the introduction of more complex emissions systems.
Transition to Successors
In 1999, Caterpillar introduced the C15 engine, succeeding the 3406E. While the C15 offered advancements in emissions compliance and performance, the 3406E’s reputation for reliability ensured its continued popularity among operators and mechanics.
The Caterpillar 3406 engine series, culminating in the Cat 3406E, represents a peak of diesel engine development. Its evolution reflects the industry’s shift from mechanical to electronic systems, balancing performance with emerging environmental standards. The 3406E’s enduring presence in various applications attests to its exceptional design and lasting impact on the heavy-duty engine market. At IPD Parts, we proudly supply high-quality replacement parts for Caterpillar engines, including the 3406 series, to distributors and resellers worldwide. For more information, contact us today!
