The History of the Caterpillar C12 Engine

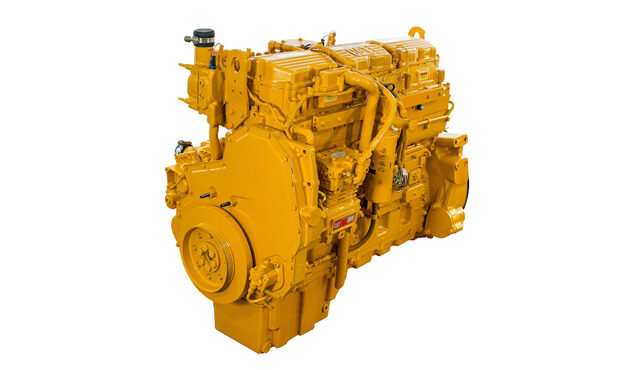

Caterpillar C12 Engine

The Caterpillar C12 engine stands as a symbol of reliability and performance in the heavy-duty diesel engine market. Designed for long-haul trucking, marine use, industrial applications, and more, the C12 exemplified Caterpillar’s engineering strength during its production years. From its advanced fuel management systems to its durability in extreme conditions, the C12 continues to earn respect from operators and mechanics alike.

Origins and Development

The Caterpillar C12 was introduced in the late 1990s as a mid-range engine, bridging the gap between the smaller C10 and the powerful C15. Built for both on-highway and off-highway use, the C12 quickly became a popular choice in freight and fleet operations. The engine was engineered for versatility, incorporating advancements in emissions control and electronic management systems that pushed the limits of traditional diesel technology.

Caterpillar C12 Engine Specs

The Caterpillar C12 is a 12.0-liter inline-six, four-stroke diesel engine that offers a solid combination of power and efficiency. Key specifications include:

  • Displacement: 12.0 liters (732 cubic inches)
  • Bore and Stroke: 5.1 in x 5.9 in (130 mm x 150 mm)
  • Configuration: Inline 6-cylinder
  • Aspiration: Turbocharged and aftercooled
  • Horsepower: 340–490 HP
  • Torque: 1,250–1,650 lb-ft
  • Fuel System: Electronically controlled unit injector fuel system
  • Oil Capacity: Approx. 9.4 gallons
  • Dry Weight: ~2,070 lbs

This balance of power and weight made the C12 an ideal choice for long-distance trucking and heavy machinery alike.

Technology Ahead of Its Time

Several groundbreaking technologies helped the C12 stand out in a competitive market:

ADEM III ECM (Advanced Diesel Engine Management)

This electronic control module improved fuel efficiency, optimized timing, and offered superior diagnostics. It played a critical role in ensuring consistent performance while reducing emissions, an important feature during the early push toward cleaner diesel engines.

HEUI Fuel System

The Hydraulically Actuated Electronically Controlled Unit Injection (HEUI) system was a standout innovation. It allowed for more accurate fuel delivery at varying engine loads, which improved combustion efficiency, reduced noise, and enhanced throttle responsiveness.

Turbocharging and Aftercooling

Equipped with a turbocharger and an air-to-air aftercooler, the C12 was designed to maintain power and fuel economy at high altitudes and under heavy loads. These systems also played a crucial role in emissions reduction and power preservation.

Industries That Relied on the C12

On-Highway Trucking

One of the most common uses of the C12 engine was in over-the-road trucks. Trucking companies valued their power-to-weight ratio, fuel efficiency, and dependability over hundreds of thousands of miles. It was a workhorse engine that met performance expectations while offering low maintenance costs.

Marine Applications

Compact, lightweight, and strong, the C12 was also widely used in marine vessels for propulsion and auxiliary functions. Fishing boats, patrol vessels, and commercial boats utilized the C12 due to its dependable torque and efficiency on water.

Construction and Industrial Equipment

Heavy-duty construction equipment such as excavators, wheel loaders, and large generators also benefited from the torque curve and responsiveness of the C12. Its robust design enabled it to perform reliably under rugged conditions and extended use.

Strengths of the Caterpillar C12 Engine

The C12’s reputation wasn’t built on power alone. It is also great in long-term performance and practicality. Here are some of the key advantages that contributed to its popularity:

  • Reliability: Built to last, the C12 routinely surpassed mileage expectations with proper maintenance.
  • Low Operating Costs: Fuel economy and minimal downtime contributed to strong lifecycle value.
  • Simplified Maintenance: The C12 was designed with serviceability in mind, making it easier for technicians to perform routine inspections and repairs.
  • Versatility: Its use across trucks, boats, and construction equipment made it one of the more adaptable Caterpillar engines.

Known Challenges and Common Issues

Like any engine, the Caterpillar C12 wasn’t without its flaws. Common issues included:

  • Water Pump Failures: Some units experienced premature water pump wear, which could lead to overheating if not addressed.
  • Injector Wear: The HEUI system, while advanced, could lead to performance drops if injectors wear down over time.
  • Oil Leaks: Seepage around seals and gaskets was a recurring issue, especially in high-mileage engines.

However, these issues were generally manageable with regular maintenance and high-quality replacement parts.

Emissions Regulations and the End of Production

In the early 2000s, emissions regulations in North America became increasingly stringent. While the C12 met earlier standards with the help of its HEUI system and ADEM III controls newer requirements around 2004–2007 called for more advanced emissions treatment like diesel particulate filters and selective catalytic reduction systems.

As a result, Caterpillar phased out the C12 in favor of its C13 and C15 models, which could more effectively integrate emissions technologies. Though production ceased, the C12 continues to live on in fleets around the world, thanks to its serviceable design and dependable track record.

A Global Legacy

Despite no longer being in production, the Caterpillar C12 engine remains in active use today across various sectors and continents. From North America to Africa and Southeast Asia, the C12 is still running strong in trucks, generators, and boats. Its parts availability and mechanical familiarity make it an enduring choice for operations that prioritize uptime and reliability.

Looking Ahead: Support for C12 Operators

Because of the engine’s lasting popularity, many aftermarket and OEM suppliers continue to offer parts and rebuild kits for the C12. Engine overhaul components, gaskets, injectors, water pumps, cylinder kits, and more are readily available through established distributors.

IPD, a global leader in manufacturing high-quality engine components, is proud to support Caterpillar engine owners by offering reliable replacement parts for the C12 and many other models. With a global distribution network, IPD supplies parts to authorized distributors worldwide, ensuring legacy engines like the C12 can continue operating for years to come.

Whether you’re rebuilding a C12 for fleet use or performing routine maintenance on your long-haul truck, IPD offers precision-engineered components trusted by engine professionals around the globe.

Why the Caterpillar C12 Still Matters?

The C12 isn’t just an old engine. It represents an era in diesel innovation when performance, efficiency, and simplicity were expertly balanced. Its solid build quality, user-friendly maintenance requirements, and technological advances made it a standout product that continues to earn respect decades after its introduction.

In many ways, the Caterpillar C12 laid the groundwork for future engine designs and set the bar for what a dependable workhorse should look like. At IPD Parts, we proudly supply high-quality replacement parts for Caterpillar engines, including the C12 engine, to distributors worldwide. For more information, contact us today!
