IPD Products for Cummins ISX15 ENGINES
In-Frame & Out-of-Frame Engine Overhaul Kits
Piston Kits
Cylinder Liner Kits
Valvetrain
Engine Bearings
Gasket Sets & Components
The Standard for Quality, Innovation, Service and Support Since 1955
IPD Parts for Cummins ISX15
In-Frame and Out-of-Frame Engine Kits
- IPDSteel® Piston and Cylinder Liner Kits
- Valvetrain Components
- Engine Bearings
- Gaskets Sets

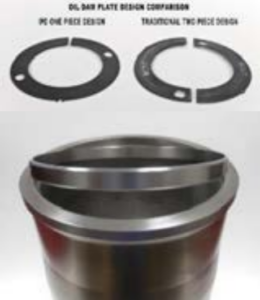

IPD engine kits for ISX15 engines feature updated/high-tech specification IPDSteel® 1-piece pistons (closed skirt/bushingless design) for use with APR (antipolishing ring) cylinder liners. IPD’s design features an exclusive and innovative 1-piece oil dam plate that is superior to all 2-piece competitive designs. All IPDSteel pistons are manufactured by IPD in Torrance, California (USA).
IPD’s updated APR cylinder liner is induction heat treated, includes a precision honed ID for proper break-in, and has an OE style carbon scraper ring. This liner comes pre-installed with a premium design/specification 36-tab brass shim for ease of installation. Also, for a limited time, IPD includes a special APR piston installation tool for free with each engine kit order. IPD engine kits include main bearings, connecting rod bearings (not provided in equivalent OE kits), and a comprehensive gasket set.
IPD main bearings are packaged to ensure they arrive ready to use without risk of shipping and handling damage (unlike bulk packing). IPD connecting rod bearings are available for both saw-cut and fractured type rods. IPD’s gasket set component parts are made with heavy-duty OE style components, and each set includes an updated style oil bypass valve (see image, significantly different than the previous ISX style valve).
IPD parts for on-highway engine applications are protected by IPD’s limited (industry-leading) 2-YEAR / UNLIMITED MILES warranty (contact IPD to details).

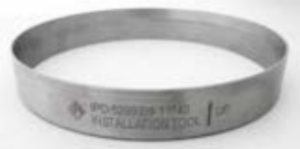

For a limited time, IPD’s special APR piston installation ring tool for APR liners is provided FREE with each engine kit (a $149 OE value).
IPD PARTS QUICK REFERENCE FOR ISX15 (15L) ENGINE APPLICATIONS
| Description | Part Number | Qty. | Notes |
|---|---|---|---|
| IN-FRAME KITS | Pistons Kits, Liner Kits, Rod & Main Bearings, Bypass Plunger Valve, Head Gasket Set, Pan Gasket & P/U Tube O-Ring | ||
| In-Frame Kit IPDSteel™ Piston | IF1758/04CR | 1 | CPUs: 3348, 3349, 3376, 3490, 3491, 3687, 3688 Must be used with sawcut connecting rods |
| In-Frame Kit IPDSteel™ Piston | IF2023/04CR | 1 | CPUs: 3350, 3550, 3686, 3706, 3794, 3797, 3938, 3939, 4584, 4585, 4587, 4588 Must be used with sawcut connecting rods |
| In-Frame Kit IPDSteel™ Piston | IF2023/04FR | 1 | CPUs: 3350, 3550, 3686, 3706, 3794, 3797, 3938, 3939, 4584, 4585, 4587, 4588 Must be used with fractured connecting rods |
| In-Frame Kit IPDSteel™ Piston | IF2080/04CR | 1 | CPUs: 3657, 3719, 3724, 3937, 4583, 4568 Must be used with sawcut connecting rods |
| In-Frame Kit IPDSteel™ Piston | IF2080/04FR | 1 | CPUs: 3657, 3719, 3724, 3937, 4583, 4568 Must be used with fractured connecting rods |
| OUT-OF-FRAME KITS | In-Frame Kit & Lower Gasket Set | ||
| Out-of-Frame Overhaul Kit IPDSteel™ Piston | OF1758/06CR | 1 | CPUs: 3348, 3349, 3376, 3490, 3491, 3687, 3688 Must be used with sawcut connecting rods |
| Out-of-Frame Overhaul Kit IPDSteel™ Piston | OF1758/06FR | 1 | CPUs: 3348, 3349, 3376, 3490, 3491, 3687, 3688 Must be used with fractured connecting rods |
| Out-of-Frame Overhaul Kit IPDSteel™ Piston | OF2023/06CR | 1 | CPUs: 3350, 3550, 3686, 3706, 3794, 3797, 3938, 3939, 4584, 4585, 4587, 4588 Must be used with sawcut connecting rods |
| Out-of-Frame Overhaul Kit IPDSteel™ Piston | OF2023/06FR | 1 | CPUs: 3350, 3550, 3686, 3706, 3794, 3797, 3938, 3939, 4584, 4585, 4587, 4588 Must be used with fractured connecting rods |
| Out-of-Frame Overhaul Kit IPDSteel™ Piston | OF2080/06CR | 1 | CPUs: 3657, 3719, 3724, 3937, 4583, 4568 Must be used with sawcut connecting rods |
| Out-of-Frame Overhaul Kit IPDSteel™ Piston | OF2080/06FR | 1 | CPUs: 3657, 3719, 3724, 3937, 4583, 4568 Must be used with fractured connecting rods |
| PISTON KITS | Includes APR Piston, Pin, Retainers & Ring Set. Use in full sets only | ||
| Piston Kit | 2881758 | 6 | APR piston and APR liner must be used together |
| Piston Kit | 2882023 | 6 | APR piston and APR liner must be used together |
| Piston Kit | 2882080 | 6 | APR piston and APR liner must be used together |
| CYLINDER LINER KIT | Includes APR Cylinder Liner, APR Ring, and Seals. Use in full sets only. | ||
| Liner Kit | 4376168 | 6 | APR piston and APR liner must be used together |
| VALVETRAIN | |||
| Valve, Exhaust | 4101454 | 12 | 20 degree |
| Valve, Intake | 4966688 | 12 | 20 degree |
| Valve Guide | 4026657 | 24 | |
| Valve Lock | 3883583 | 24 | |
| Valve Seat Insert – Intake | 3679537 | 12 | |
| Valve Seat Insert – Intake | 3796959 | 12 | Cobalt based with Stellite |
| Valve Seat Insert – Exhaust | 3010445 | 12 | |
| Valve Spring | 3879651 | 24 | |
| Valve Stem Seal | 4356536 | 24 | |
| ENGINE BEARINGS AND BUSHINGS | |||
| Main Bearing Set, Std | 3800298 | 1 | Standard |
| Main Bearing Set, 0.25mm | 4088845 | 1 | 0.25mm |
| Rod Bearing, Std | 2882087 | 6 | For fractured connecting rods |
| Rod Bearing, Std | 4089405 | 6 | Standard for drilled, non-drilled rods & sawcut rods |
| Rod Bearing, 0.25mm | 4089016 | 1 | 0.25mm, for drilled, non-drilled, & sawcut rods (1 kit per engine) |
| Cam Bushing | 3686590 | 7 | |
IPD PARTS ENGINE APPLICATIONS
CATERPILLAR®
C7/C9/C10/C12/C13/C15/C18/C27/C32
3606/3608/3612/3616/3618
3508/3512/3516/3520/3524 (Diesel & Gas)
3406E/3408E/3412E
3406/3408/3412 (Diesel & Gas)
3304/3306 (Diesel & Gas)
3204/3208
3114/3116/3126/3176C/3196
3064/3066
333/342/339/342/343/346/348/353/379/398/399 (Diesel & Gas)
CUMMINS® ISX/QSX (14.9L), K19 Series
DETROIT DIESEL® 60 Series
VOLVO® D12 Series
WAUKESHA® VHP Series (7042/7044)
